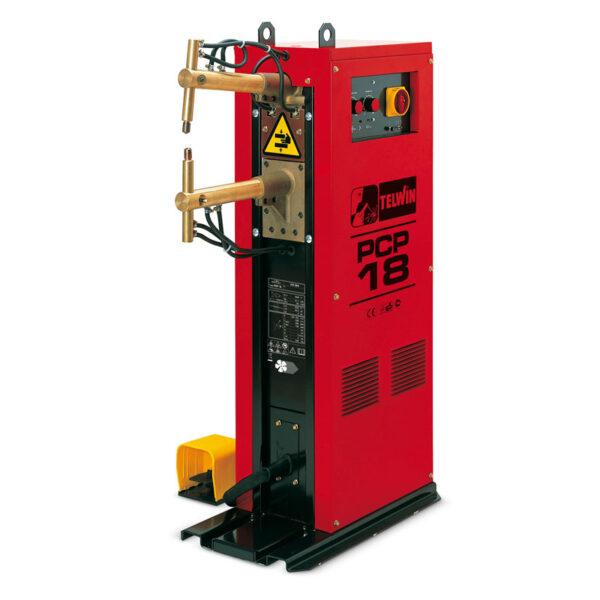

TELWIN Air Foot Control Spot Welder With Timer PCP 18
- COLUMN SPOT WELDER WITH MOVABLE ARMS & BUILT-IN SYNCHRONOUS CONTROL BY THYRISTORS. IT GRANTS OPTIMUM RESULTS ON DIFFERENT KINDS OF STEEL.
- ADJUSTMENT OF SPOT WELDING CURRENT (FROM 20 TO 100%), SPOT WELDING TIME (FROM 1 TO 1OO CYCLES), ELECTRODE PRESSURE *PNEUMATIC COMPRESSED AIR CONTROL. THE MODEL REQUIRES WATER COOLING FOR ELECTRODES AND ARMS.
Email : sales@machineryonsale.com.sg
Description
Column spot welder with movable arms and built-in synchronous control by thyristors. It grants optimum results on different kinds of steel. Characteristics: adjustment of spot welding current (from 20 to 100 %), spot welding time (from 1 to 100 cycles), electrode pressure * pneumatic compressed air control. The model requires water cooling for electrodes and arms.
| Model | PCP 18 (824043) |
| Main voltage | 400V/3 phase / 50/60Hz |
| Max spot-welding current | 9700A |
| Max no-load voltage | 2.6V |
| Absorbed power | 22 kW |
| Rated power x=50% | 1.5 kVA |
| Power factor | 0.7 cosphi |
| Max welding thickness on 2 sheets | 3mm + 3mm |
| Max electrodes power | 190 daN |
| Arms projection | 330 mm |
| Duty cycle | 15% |
| Protection degree | IP 20 |
| Dimensions | 79 cm x 32 cm x 128 cm |
| Weight | 120 kg |
