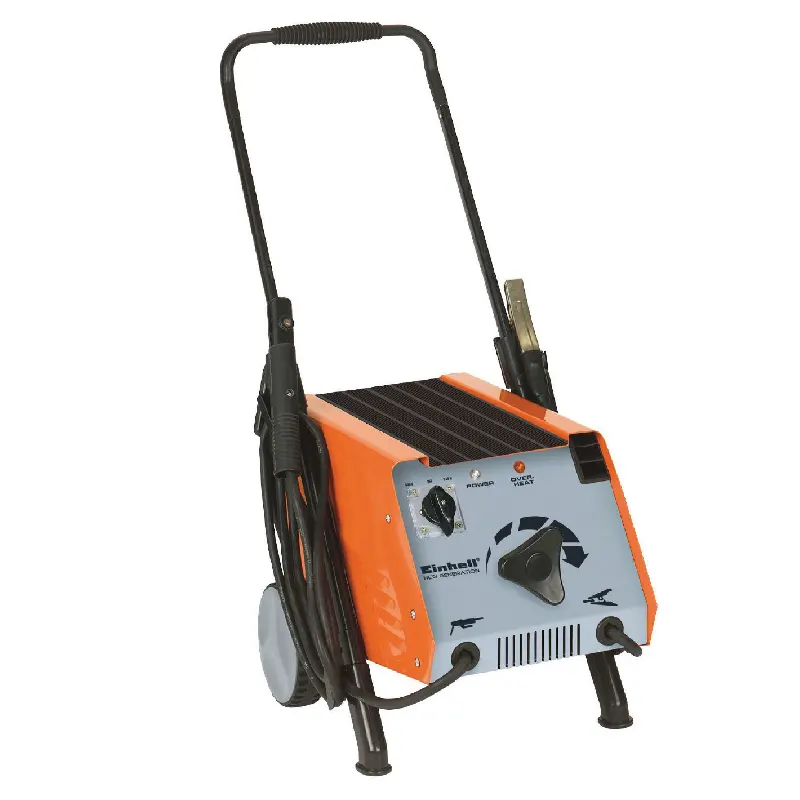

EINHELL 270A 230/400V 50HZ Welding Transformer EIN-WT-NSG270F
- WELDING CURRENT: THE WELDING CURRENT STRENGTH SETTING AND THE ELECTRODES DEPENDS ON THE MATERIAL. THE AVAILABLE SETTING ENSURE A WIDE RANGE OF APPLICATIONS.
- MAINS CONNECTION: DEPENDING ON WHAT POWER CAN BE OPERATED WITH 230v OR 400 V WITHOUT ANY PROBLEMS.
- ELECTRODE: 2.0-5.0 MM
- WEIGHT: 26.5 KG
Email : sales@machineryonsale.com.sg
Description
Electric welding transformers are used primarily for weld-joining flat irons, angle irons, tubes, or similar materials. One great advantage of electric welding is that it obviates the need for warming the materials, i.e. welding can be started directly at the requested position. Work-pieces of various strengths can also be welded to each other with equal ease. The electric welding transformer can be operated at 230V/400V nominal voltage. Nominal voltage is regulated with a rotary switch. The electric welding transformer is particularly suitable for mobile applications.

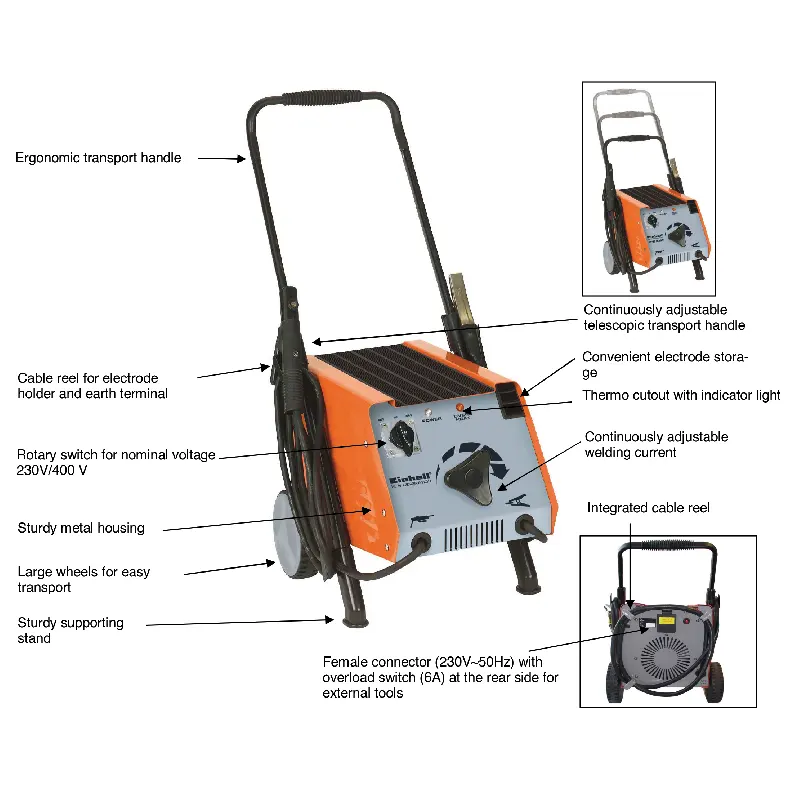

- Female connector (230V~50Hz) with overload switch (6A) at the rear side for external tools.
- Continuously adjustable welding current.
- Practical electrode storage.
- Main cable 400V.
- Rotary switch for nominal voltage 230V/400V
- Thermo cutout with control lamp.
- Ergonomic transport handle.
- Complete with welding accessories.
- Turbo cooling by an integrated cooling fan.
- Tool without mains plug.
- Model: NSG 270F
- Mains: 230V / 400V ~ 50Hz
- No load voltage: 48V
- Fuse: 32 A
- Welding current max: 175 A at 230V / 250 A at 400V
- Electrodes Ø: 2.0 - 5mm
- Gross weight: 26.5 kgs
- Packing dimension: 485 x 270 x 415 mm
